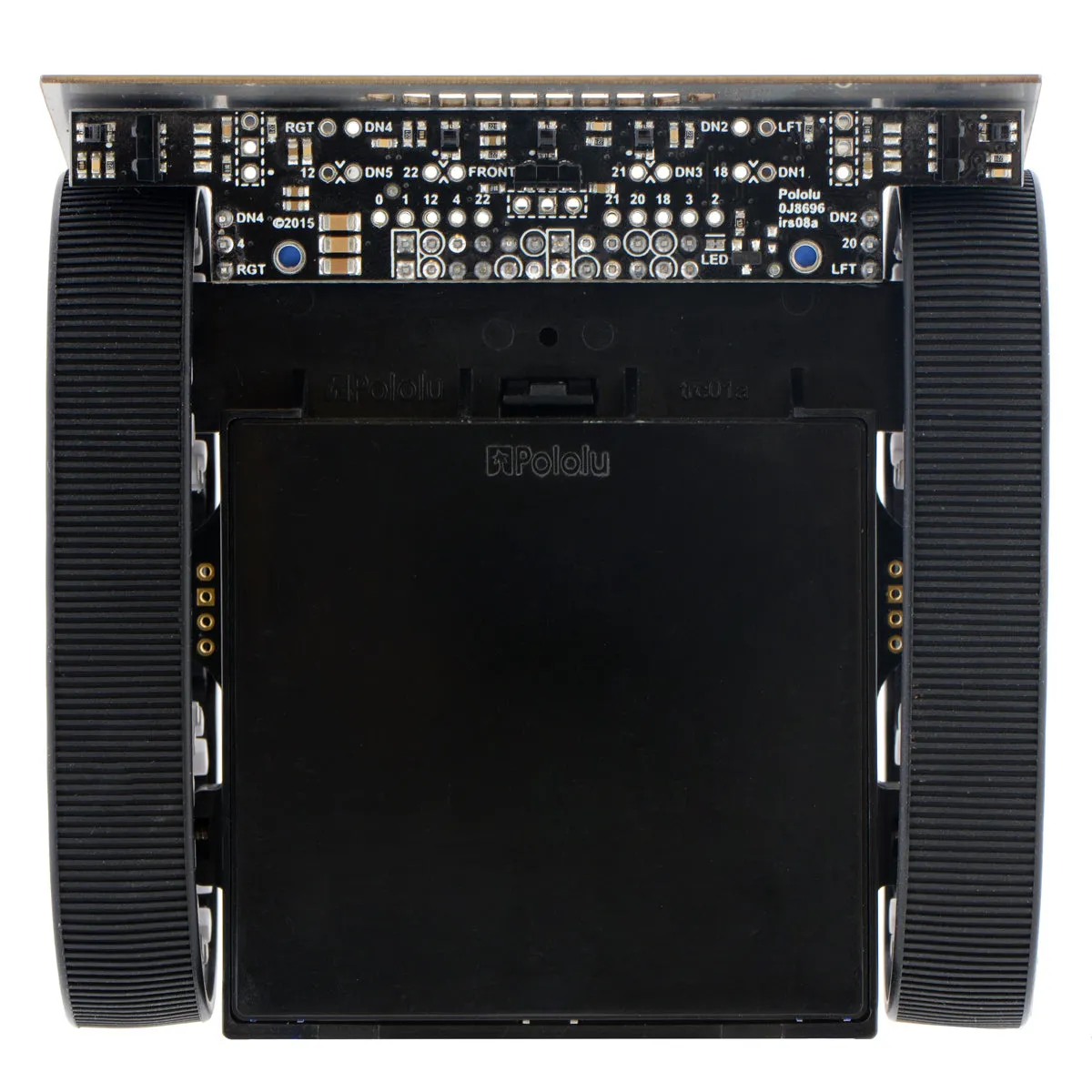

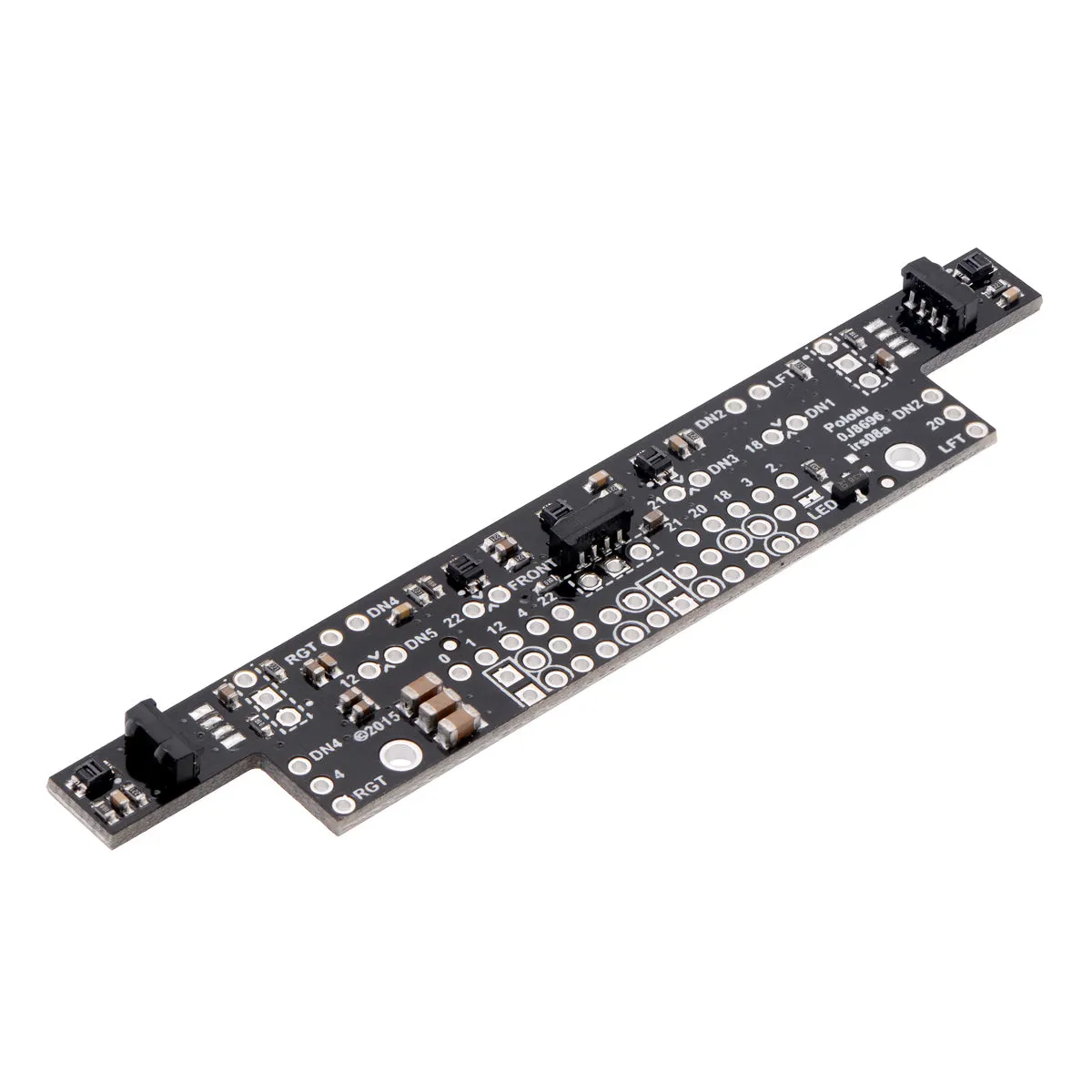

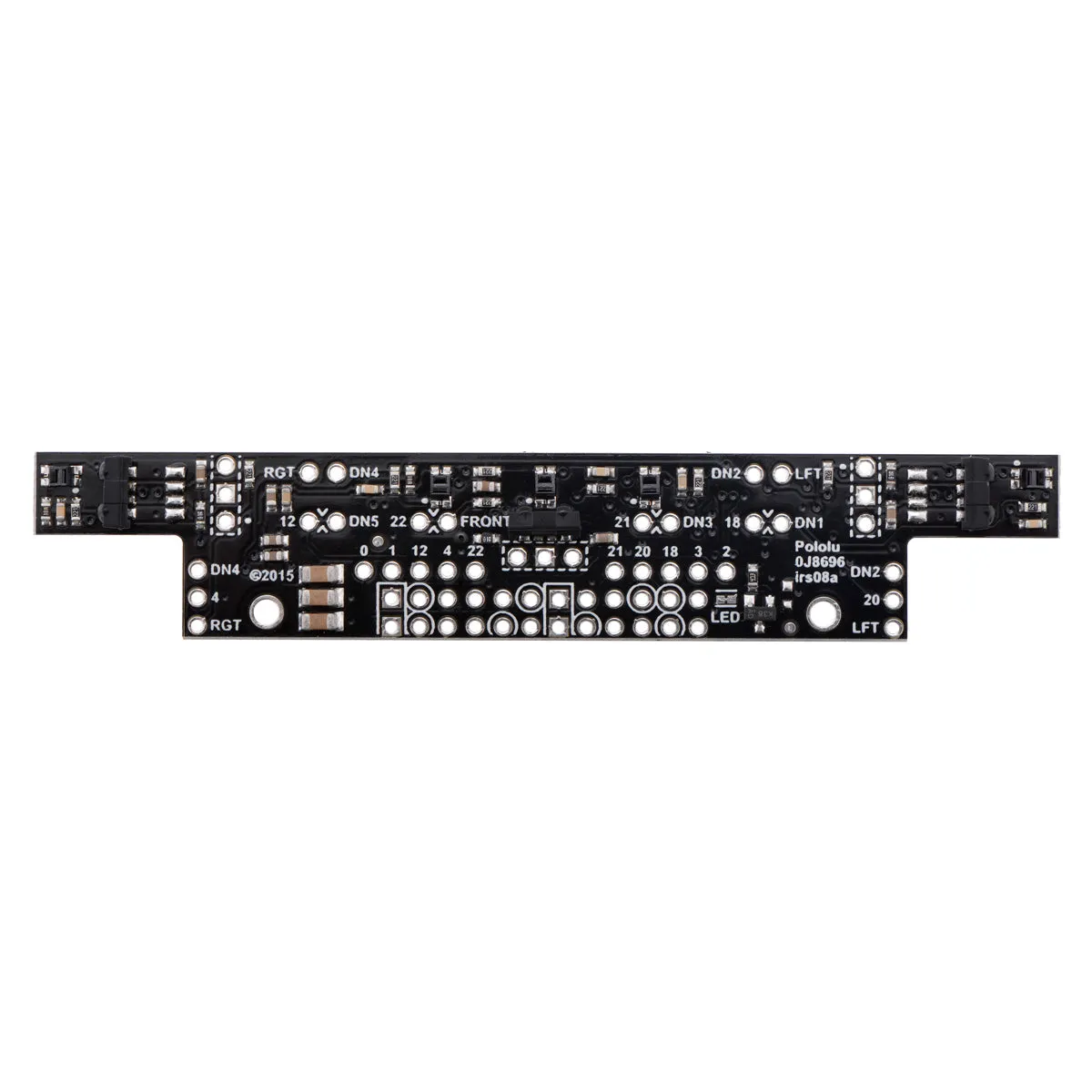

This is the front sensor array of the

It is included as part of the Zumo 32U4 OLED Robot Kit. It is not intended for use with the Zumo Robot for Arduino or Zumo Shield for Arduino. Additional header pins and infrared LEDs are included.

Included components

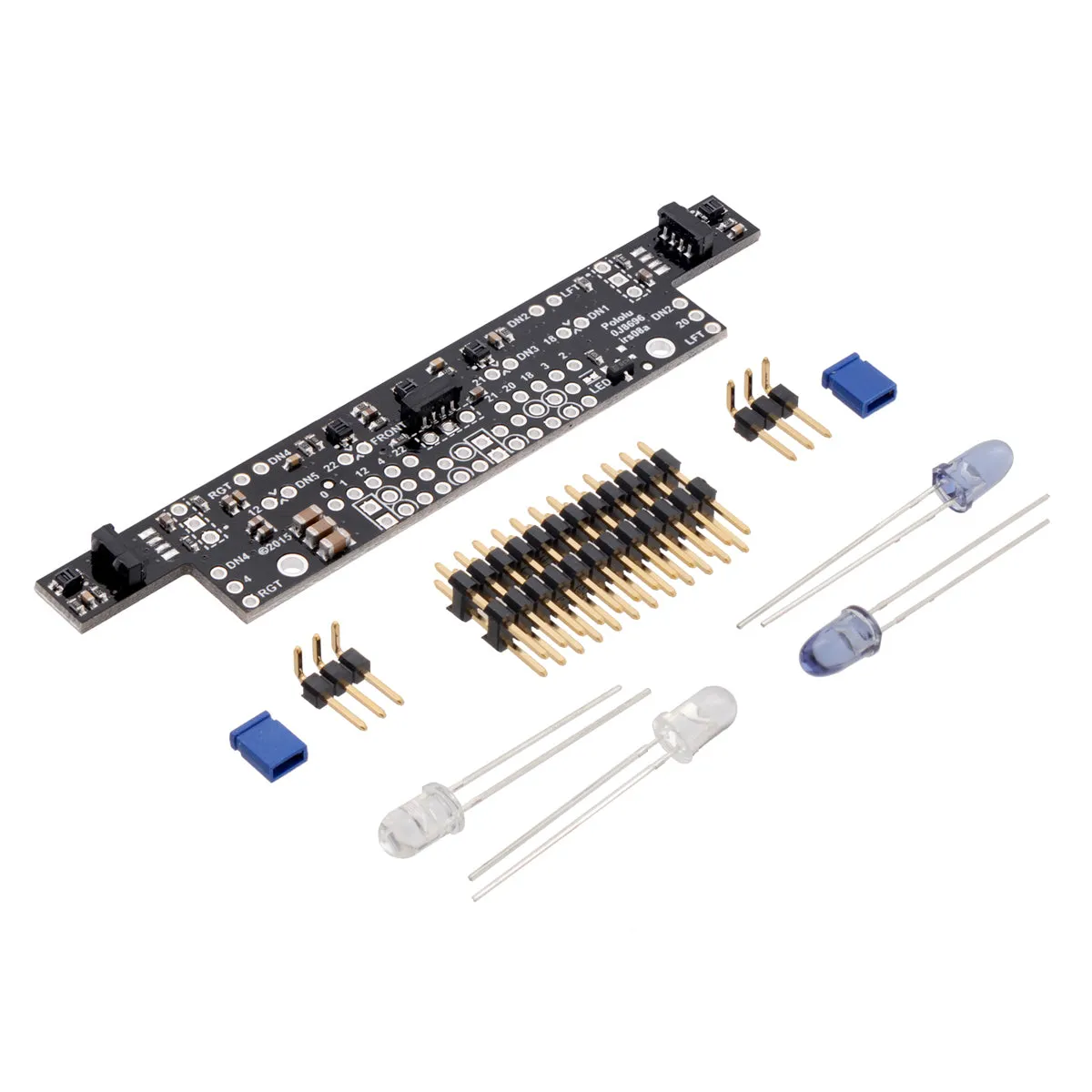

The Zumo 32U4 Front Sensor Array includes:

• 2×12 extended male header for sensor array
• two 1×3 right-angle male headers and two shorting blocks – jumpers for sensor array
• two wide-angle and two narrow-angle through-hole infrared LEDs (these plug into the main board and serve as forward emitters for the proximity sensor detectors located on the front sensor array)

Resources

Documentation and other information

• - User’s manual for the Pololu Zumo 32U4 robot.

File downloads

• - This DXF drawing shows the locations of all of the board’s holes.
