THz and sub-THz Lens - 50 mm focal length
$
95.00
Title
Please select combo product attributes
The combo subtotal is $,SAVE
$
Unavailable
Quantity
-
+
ADD TO CART
BUY IT NOW
Item Description
50 mm focal length lens.

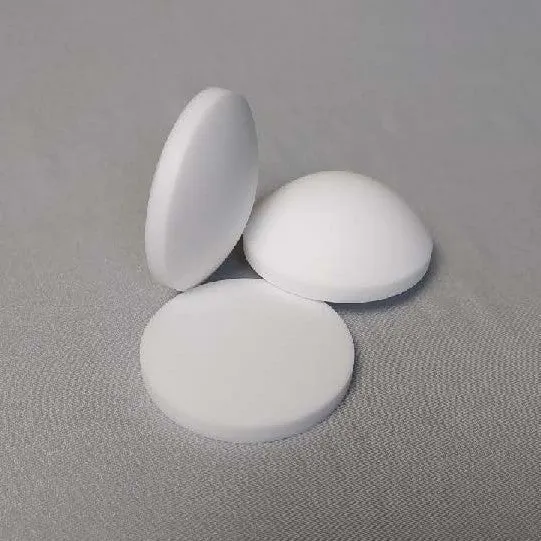

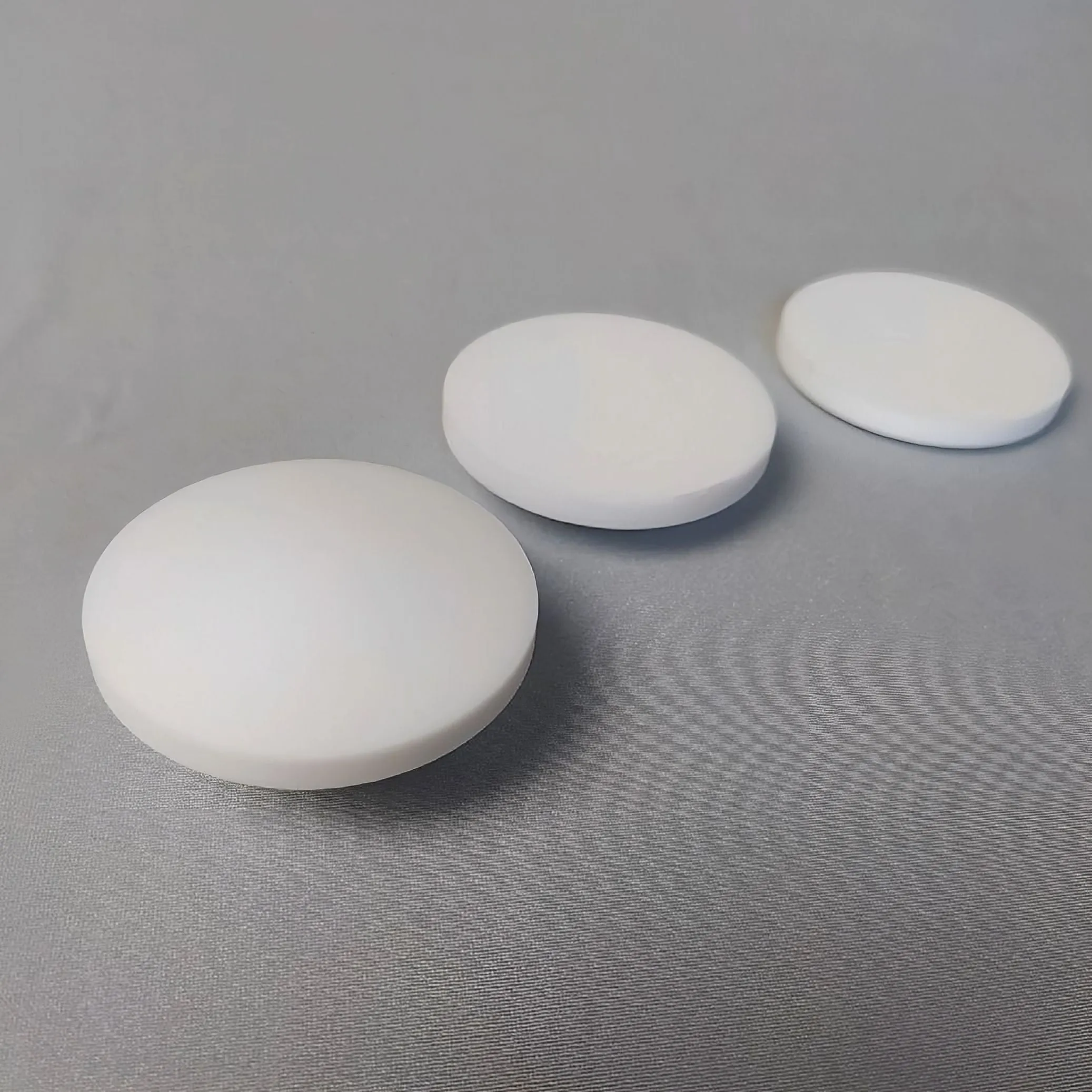

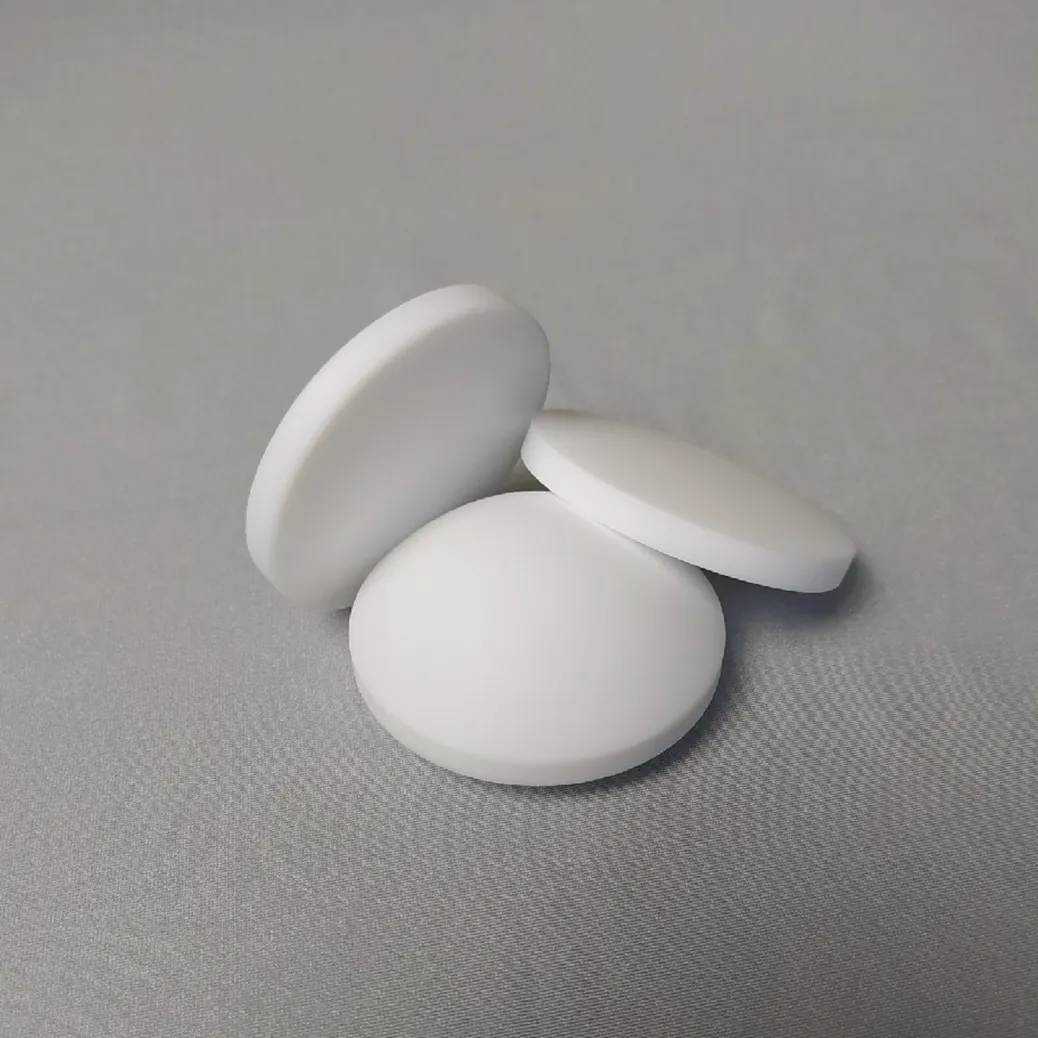

Lytid’s high-quality PTFE lenses provide excellent performances across the sub-THz and THz band. The low absorption coefficient of PTFE optics (<0.8 cm-1 up to 1 THz) in combination with low insertion loss (refractive index of ~1.4) make it a prime solution for a variety of THz and sub-mm systems within a wide frequency range, from 75 GHz up to 2 THz.
The PTFE lenses incorporate standard geometries with diameters between 1″ to 6″, focal lengths from 500 mm down to 40 mm through plano-convex, plano-aspheric or double-aspheric profiles.
> Highly-suitable material for THz applications
> Wide range of focal lengths and dimensions
> Minimal insertion losses
> Cost-effective optic
Product Technical Specs
- Summary product specifications are below
- View and download the detailed product sheet at the Download PDF tab
- Please contact us with any questions for or assistance via our or at 617-566-3821
| Optical Data | |
| Focal length | 50 mm |
| Lens diameter | 50.8 mm |
| Material |
PTFE |
| Refractive Index |
1.4 at 520 GHz |
| Absorption coefficient |
<0.8 cm-1 up to 1 THz |
| Frequency range |
75 GHz—2THz |
