Product Details
＋

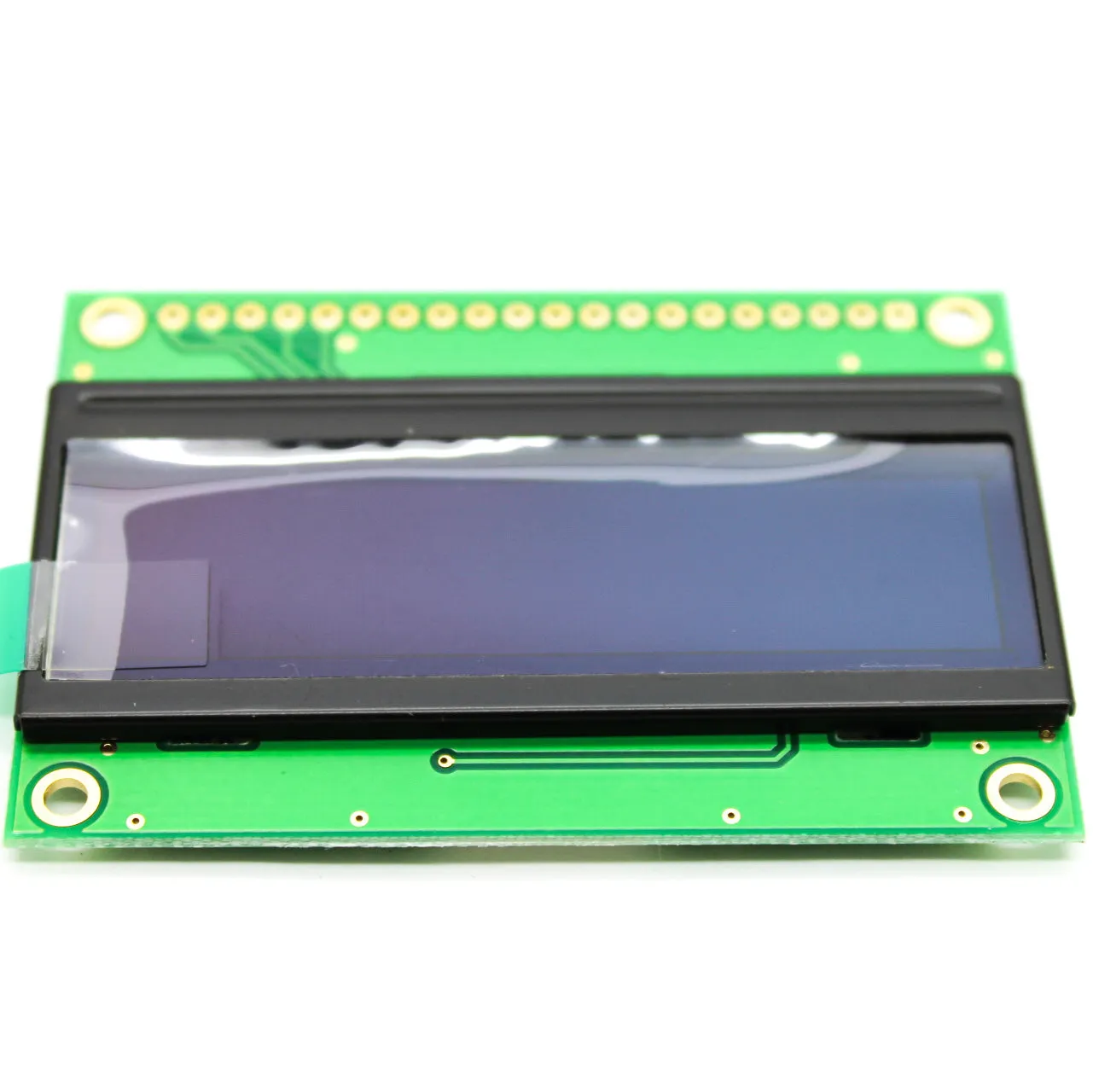

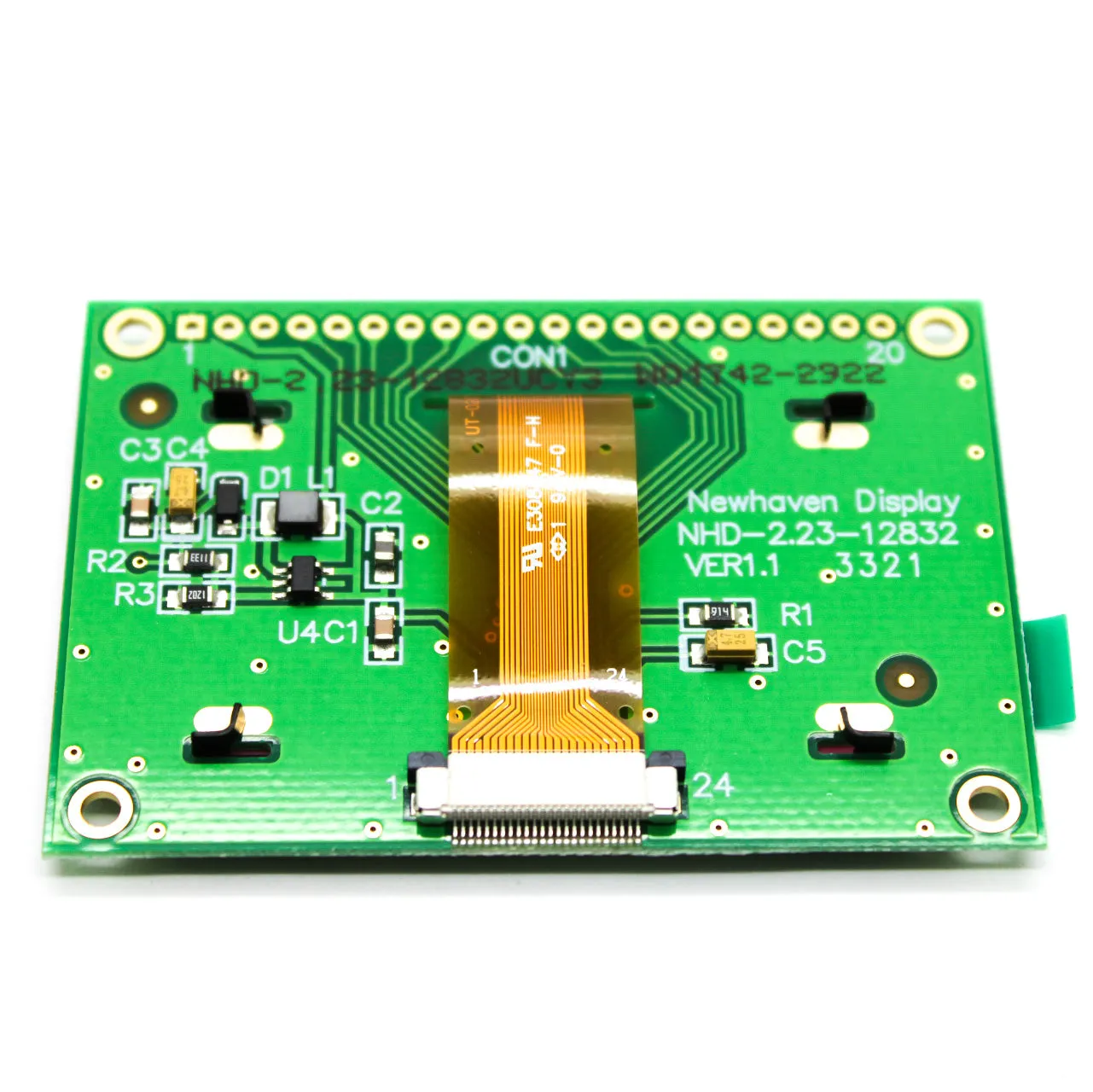

This is a Newhaven Display 63.2x43.1x6mm 128x32 Pixel OLED Display NHD-2.23-12832UCY3. It comes as pictured and does not include any additional parts or accessories.
Specifications:
- Color: Yellow
- Connector Type: 1x20 Bottom
- Controller Type: SSD1305
- Dimensions: 63.2 x 43.1 x 6 mm
- Display Mode: Yellow
- Display Size: 2.23 in
- Display Type: Graphic OLED
- Interface: 8-bit Parallel ; SPI ; I2C
- Maximum Operating Temperature: 85 °C
- Minimum Operating Temperature: -40 °C
- Pixel Count: 128 x 32
- Series: NHD Series
- Supply Voltage: 3 V
- Type: LCD Display
- View: 12:00 & 6:00
- Viewing Area: 2.23 in. Diagonal
