Product Details
＋

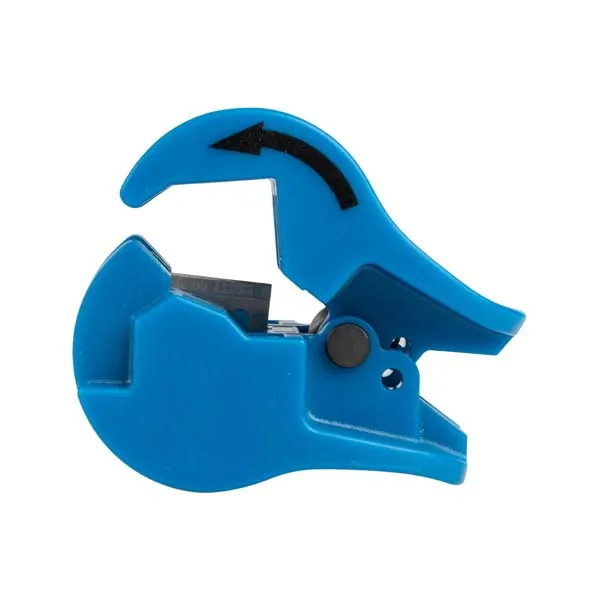

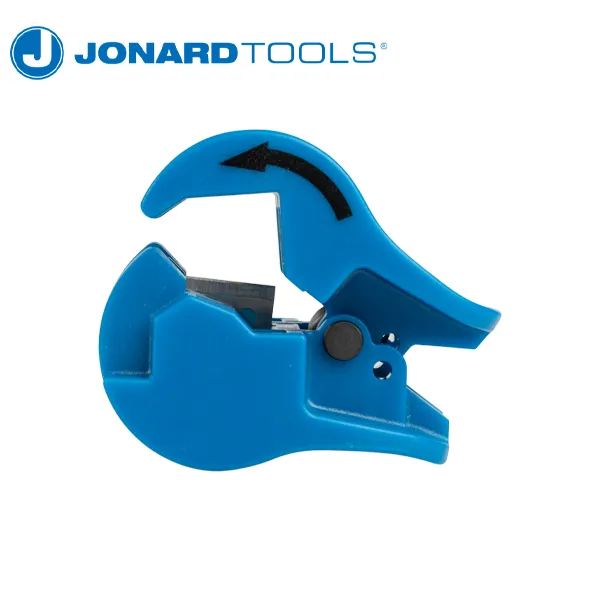

The Jonard Tools Microduct Scoring Tool is perfect for scoring and ringing 14/10 and 16/10 fiber optic microducts without damaging the fibers inside. This scoring tool features the following:
- Unique design allows you to score and ring 14/10 and 16/10 fiber optic microducts without any adjustments to the tool
- Perfect for microducts 5 mm-16 mm (0.20"-0.63") in diameter with a wall thickness of 1.5 mm-3.0 mm (0.059"-0.118")
- Wide jaws curl around the microducts, holding them in place while scoring
- Spring-loaded butterfly clip makes it easy to open and position it perfectly on microducts
- Includes the FS-1416RB blade but also compatible with FS-1080RB blade for 10/8 and 12/10 fiber optic microducts
- Replacement Blades available: FS-1080RB & FS-1416RB
| Microduct Wall Thickness | 1.5 mm-3.0 mm (0.059"-0.118") |
|---|---|
| Microduct Diameter Range | 5.0-16.0 mm (0.20"-0.63") |
| Blade Depth | 3.08 mm (0.12") |
| UPC # | 811490018341 |
