Features:

• Total measurement uncertainty 1.0 dB (< 3 GHz) and 1.5 dB (3 GHz to 7 GHz)
• 1 dB compression 5 dBm
• Displayed average noise level with preamplifier typ. –153 dBm (10 Hz)
• Twelve preselection filters up to 7 GHz
• Resolution bandwidths in line with CISPR 16-1-1
• Detectors: max./min. peak, quasi-peak, average, CISPR-average, RMS, RMS-average

The R&S®ESCI and R&S®ESCI7 EMI test receivers are standard-compliant measuring receivers for EMC certification measurements in line with commercial standards in the frequency range from 9 kHz to 3/7 GHz. The receivers conform to the latest version of the CISPR 16-1-1 basic standard. At the same time, they function as full-featured and powerful spectrum analyzers for lab applications.

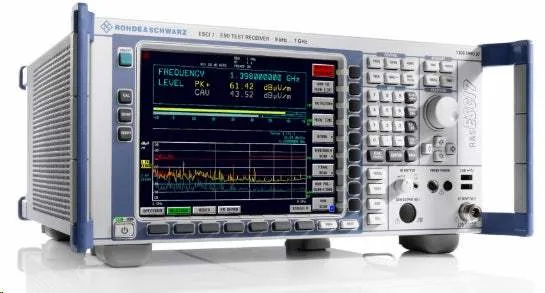

*The image is for reference only. See product specification for details.
