Product Details
＋
All SainSmart Cameras for Raspberry Pi:
|
Model |
Support |
Resolution |
Sensor |
Adjustable Focus |
IR |
Support Light |
Field Angle (Degree) |
Size (mm) |
|
|
Raspberry Pi/ Pi2 /Pi3 Model A/ B/ B |
5MP |
OV5647 |
× |
× |
× |
73 |
25x24 |
|
|
Raspberry Pi/ Pi2 /Pi3 Model A/ B/ B |
5MP |
OV5647 |
× |
√ |
√ |
73 |
25x24 |
|
Raspberry Pi/ Pi2 /Pi3 Model A/ B/ B |
5MP |
OV5647 |
√ |
√ |
√ |
76 |
25x24 |
|
|
|
Raspberry Pi/ Pi2 /Pi3 Model A/ B/ B |
5MP |
OV5647 |
√ |
× |
√ |
160 |
25x24 |
|
|
Raspberry Pi/ Pi2 /Pi3 Model A/ B/ B |
5MP |
OV5647 |
√ |
√ |
√ |
160 |
25x24 |
|
|
Raspberry Pi/ Pi2 /Pi3 Model A/ B/ B |
5MP |
OV5647 |
√ |
× |
√ |
175 |
25x24 |
|
|
Raspberry Pi/ Pi2 /Pi3 Model A/ B/ B |
5MP |
OV5647 |
√ |
√ |
√ |
175 |
25x24 |
|
|
Raspberry Pi/ Pi2 /Pi3 Model A/ B/ B |
5MP |
OV5647 |
√ | √ |
√ |
76 |
31x32 |
|
|
Raspberry Pi Zero , Pi Zero w |
5MP |
OV5647 |
× |
× |
× |
73 |
60x8 |
|
|
Raspberry Pi Zero , Pi Zero w |
5MP |
OV5647 |
× |
√ |
× |
73 |
60x8 |
Effect of IR-CUT Filter in Day/Night

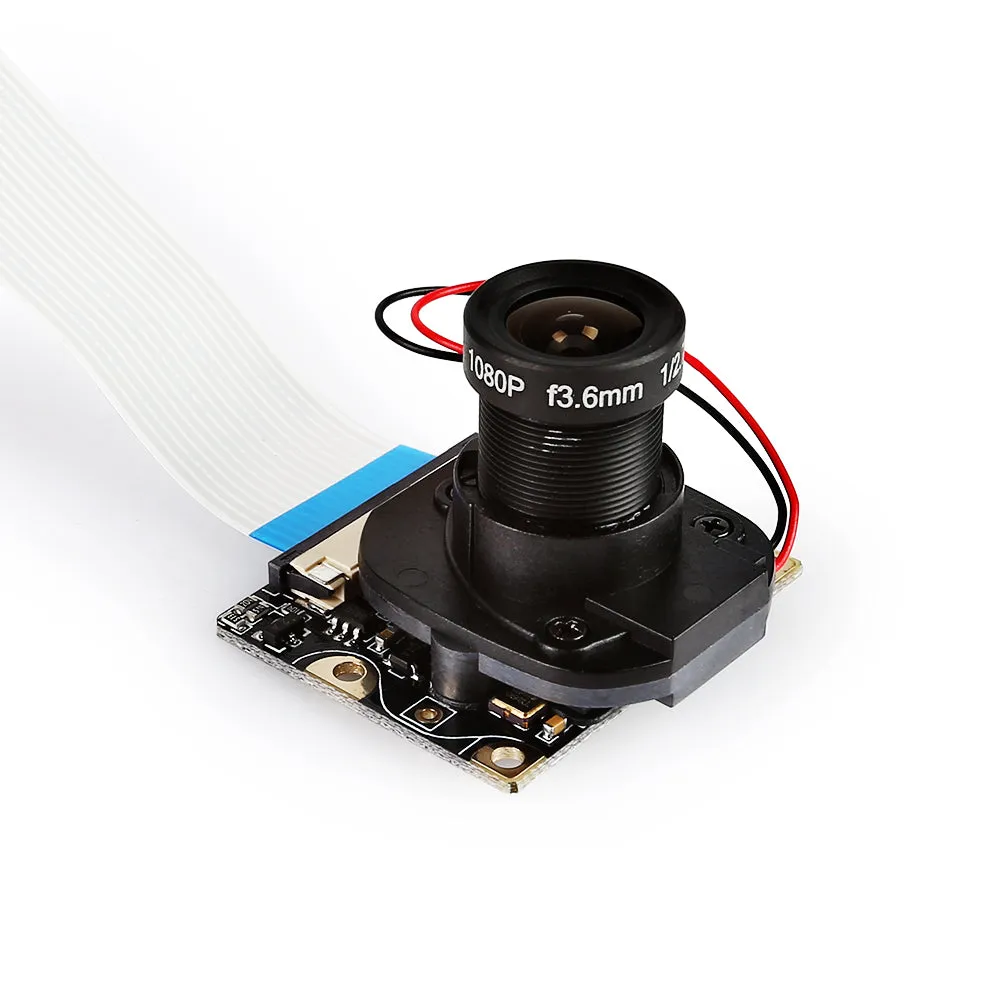

SPECIFICATION
- CCD size : 1/4inch
- Aperture (F) : 1.8
- Focal Length : 3.6mm adjustable
- Field of View : 75.7 degree
- Sensor best resolution : 1080p
- Dimension: 31mm x 32mm 1.18" x 1.22"

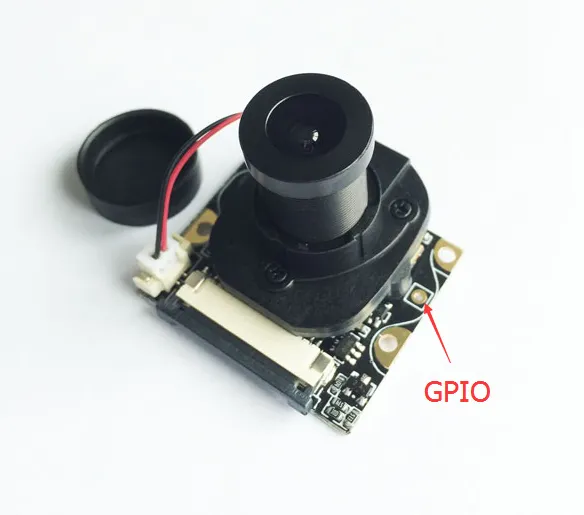

4 screw holes
- Used for attachment
- Provides 3.3V power output
- Supports connecting infrared LED and/or fill flash LED
Note: to use the camera with Raspberry Zero v1.3, you need to buy a specific cable:
WHAT'S IN THE PACKAGE

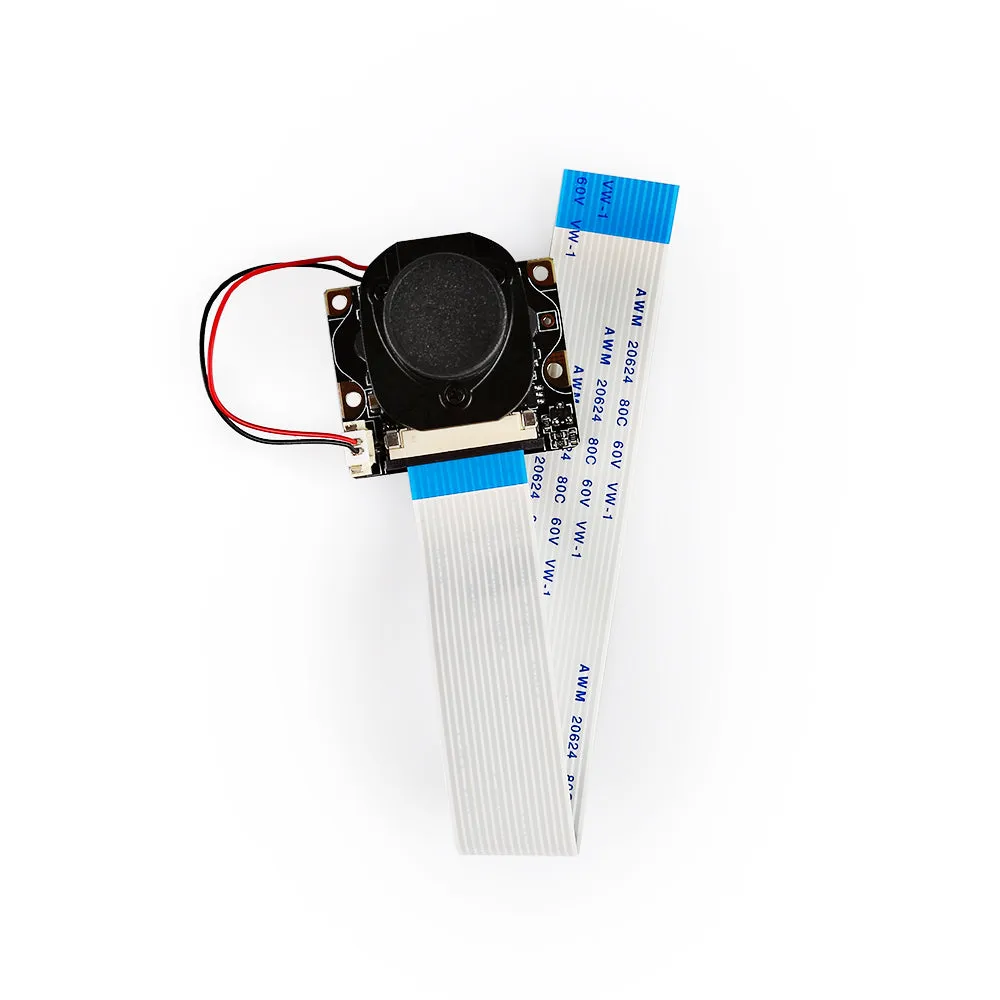

- 1 x SainSmart IR-CUT Camera Module for Raspberry Pi (infrared LED not included)
- 1 x 16-pin FFC (opposite sides contact)
