Product Details
＋
DH-ASR1102A-V2

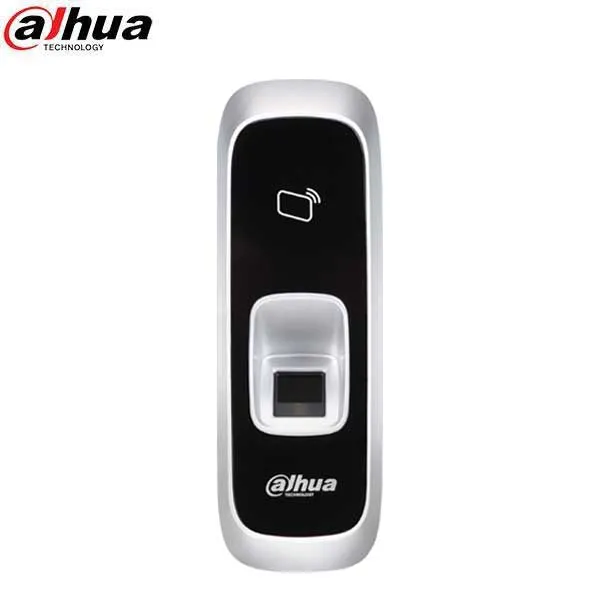

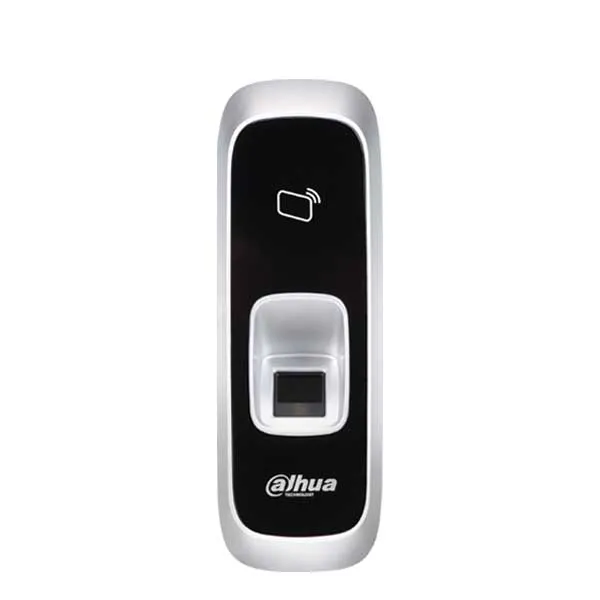

The DH-ASR1102A-V2 Fingerprint & Card Reader enforces high level security as part of a complete access control solution from Dahua Technology. With its 8-bit processor, Blue backlit LCD Display, and RS485 interface connecter, this reader is perfect for any environment.
Features:
- RS485 Protocol
- Reads MIFARE 13.56 MHz Card or Fingerprint
- Stores up to 3000 Fingerprints
- Watch Dog Function for Tamper Detection
- Audible and Visual Indicators
- Surface-mount Installation
- Call 1-800-878-6604 for Dealer Prices!
Specifications:
| System | |
| Main Processor | 8-bit |
| LCD Display | Blue Backlight |
| Audible Indicator | Buzzer |
| Card Reader | |
| Format | 13.56 MHz MIFARE |
| Distance | 2.36 in. to 3.15 in Max |
| Response Time | < 0.1 s |
| Fingerprint Reader | |
| Capacity | 3000 |
| Response Time | ≤ 0.5 s |
| Recognition Time | ≤ 1.5 s |
| FAR | ≤ 0.00004% |
| FRR | ≤ 0.15% |
| Interface | |
| To Controller | RS485 |
| Electrical | |
| Power Supply | 9 VDC to 15 VDC, 100 mA |
| Construction | |
| Dimensions | 6.52 in. x 2.23 in. x 1.14 in. |
| Color | Black |
| Certifications | |
| Safety | EN 60950-1:2006 A11:2009 A1:2010 A12:2001 A2:2013 UL 60950-1 CAN/CSA C22.2 No. 60950-1-07 |
| Electromagnetic Compatibility (EMC) |
FCC CFR 47 Part 15 subpart B EN 55032:2015 EN 55024:2010 A1:2015 EN 50130-4:2011 A1:2014 EN 6100-3-2:2014, EN 6100-3-3:2013 |
