Product Description

• Key Features

• The parameters and datasheets below can only be applied to 1501-S2 series

• In order to use the 5MP 16:9 HDCVI camera, the firmware of XVR must be upgraded to V4.001.0000001.0.R.200908 or later version

• Maximum 25 fps@5MP (16:9 video output)

• Quick-to-install eyeball saves installation time

• 3.6 mm fixed lens (2.8 mm optional)

• Maximum IR length 25 m, Smart IR

• Built-in mic

• CVI/CVBS/AHD/TVI switchable

• IP50, DC12V

• System Overview

• Experience 5MP full HD video and the simplicity of using existing cabling infrastructure with HDCVI The Lite series 5MP HDCVI camera features a compact design and offers a high quality image at a friendly price

• It offers various motorized/fixed lens models with a multi-language OSD and HD/SD switchable output

• Its structural flexibility and high cost-per-formance makes the camera an ideal choice for SMB solutions

• Functions

• 4 Signals Over 1 Coaxial Cable

• HDCVI technology supports 4 signals to be transmitted over 1 coaxial cable simultaneously, i.e video, audio, data and power

• Dual-way data transmission allows the HDCVI camera to interact with the XVR, such as sending control signal or triggering alarm

• Moreover, HDCVI technology supports PoC for construction flexibility

• Easy Installation

• HDCVI Quick-to-install eyeball adopts quick-to-install pedestal, which can achieve easier installation than conventional eyeball

• Quick-to-install camera reduces time and labor costs

• Long Distance Transmission

• HDCVI technology guarantees real-time transmission at long distance without any loss

• It supports up to 700 m for 5MP HD video via coaxial cable, and up to 300 m via UTP cable

• Simplicity

• HDCVI technology inherits the feature of simplicity from traditional analog surveillance system, making itself a best choice for investment protection

• HDCVI system can seamlessly upgrade the traditional analog system without replacing existing coaxial cabling

• The Plug And Play

• approach enables full HD video surveillance without the hassle of con- figuring a network

Product Specification

Brand	Dahua
Product Type	Dome Camera

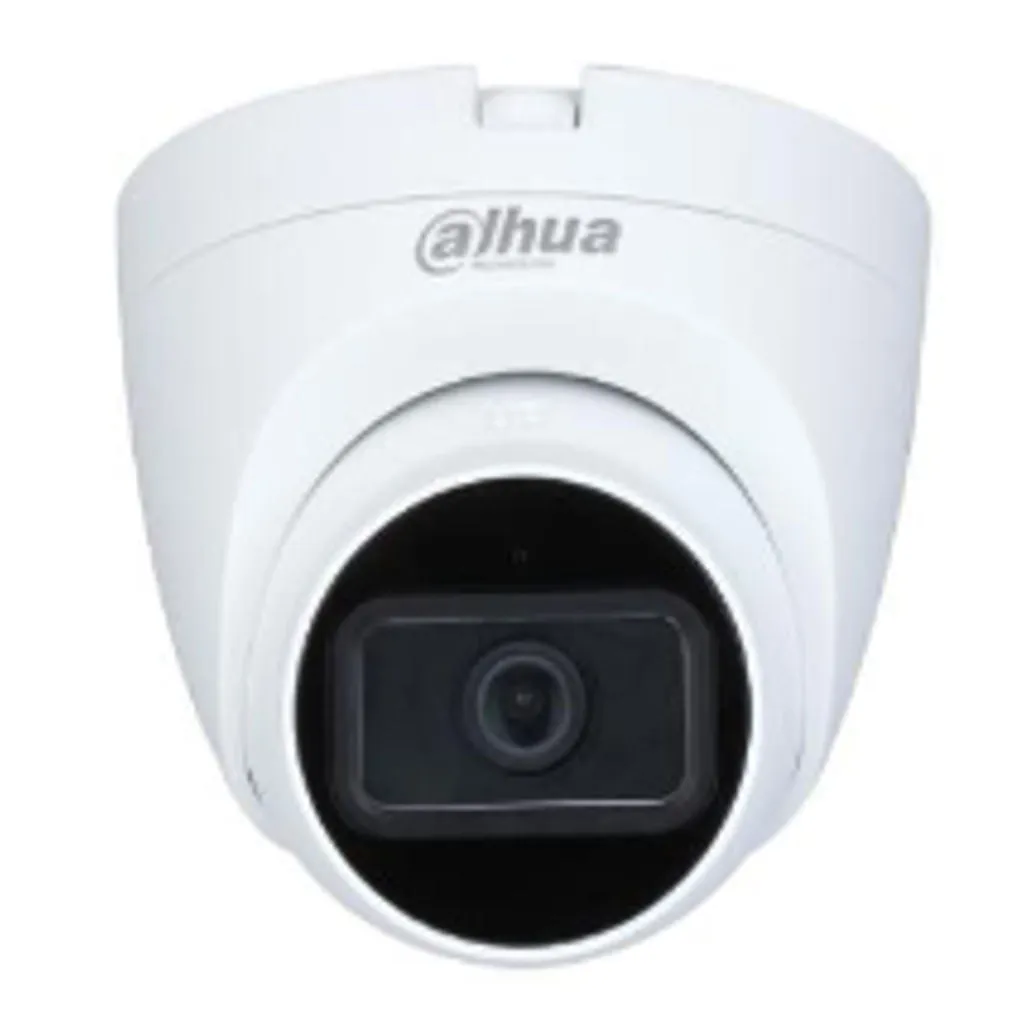

Product Model	DH-HAC-HDW1501TRQP-A
Camera
Image Sensor	1/2.7 inch CMOS
Maximum Resolution	2880 (H) × 1620 (V)
Pixel	5MP
Scanning System	Progressive
Electronic Shutter Speed	PAL: 1/25–1/100000 s NTSC: 1/30–1/100000 s
Minimun Illumination	0.01 Lux/F1.6, 30IRE, 0 Lux IR on
S/N Ratio	More than 65 dB
Illumination Distance	25m（82.0 ft）
Illuminator On/Off Control	Auto;manual
Lens
Lens Type	Fixed lens / Fixed iris
Mount Type	M12
Focal Length	3.6 mm (2.8 mm Optional)
Maximum Aperture	F1.6
Angle Of View	2.8 mm: 132° × 111° × 58° (diagonal × horizontal × vertical) 3.6 mm: 109° × 92° × 48° (diagonal × horizontal × vertical)
Focus Control	N/A
Close Focus Distance	2.8 mm: 0.9 m (3.0 ft) 3.6 mm: 1.6 m (5.2 ft)
DORI Distance	Lens	Detect	Observe	Recognize	Identify
	2.8mm	63.6 m (208.7 ft)	25.4 m (83.3 ft)	12.7 m (41.7 ft)	56.4 m (21.0ft)
	3.6mm	80 m (262.5 ft)	32 m (105.0 ft)	16 m (52.5 ft)	8 m (26.2 ft)
Pan / Tilt / Rotation
Pan / Tilt / Rotation	Pan: 0° – 360° Tilt: 0° – 90° Rotation: 0° – 360°
Video
