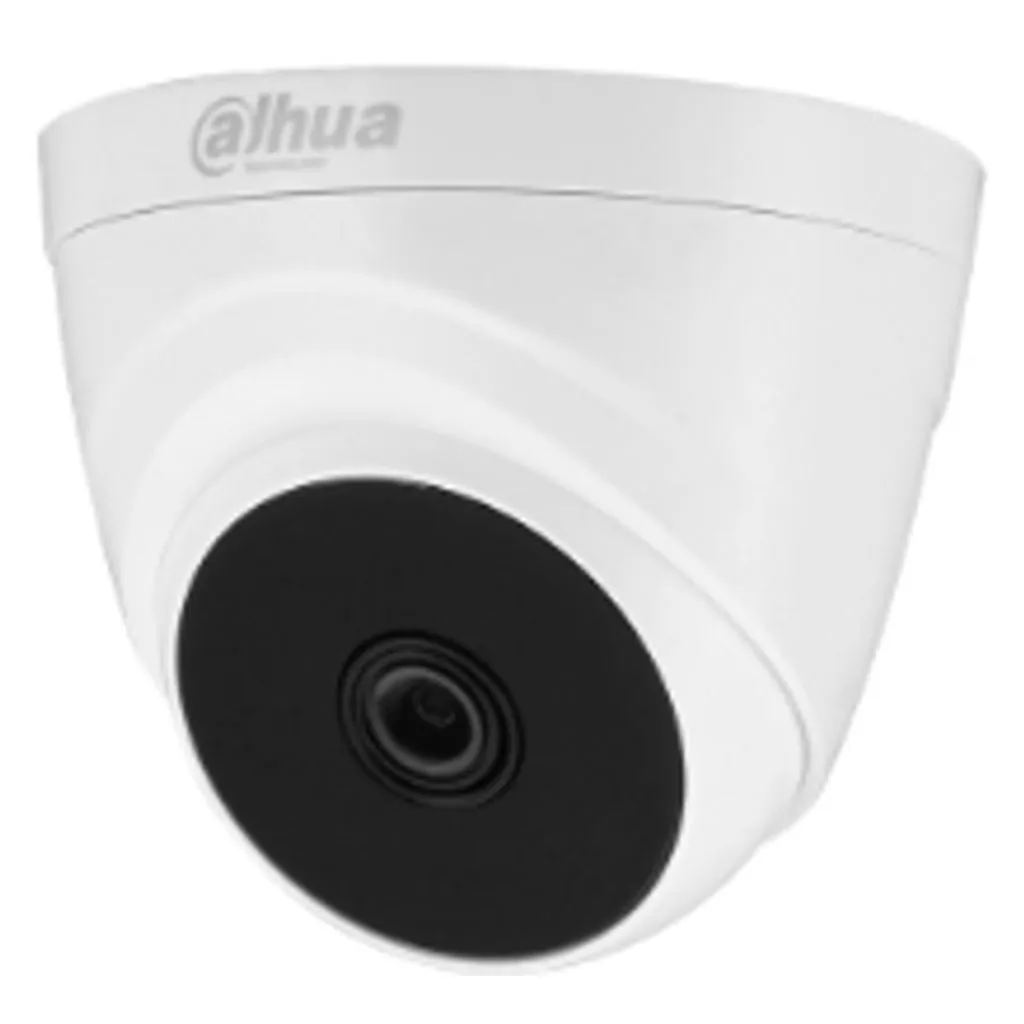

Product Description

• Key Features

• Maximum 25/30fps@720P

• HD and SD output switchable

• 2.8mm fixed lens (3.6mm optional)

• Maximum IR length 20 m, Smart IR

• 12 VDC

• System Overview

• Experience 720P video and the simplicity of using existing cabling infrastructure with HDCVI

• The Cooper series 720P HDCVI camera features a compact design and offers a high quality image at a friendly price

• It offers various fixed lens models with a multi-language OSD and HD/SD switchable output

• Its structural flexibility and high cost-performance makes the camera an ideal choice for SMB solutions

• Functions

• 4 Signals Over 1 Coaxial Cable

• HDCVI technology supports 4 signals to be transmitted over 1 coaxial cable simultaneously, i.e video, audio, data and power

• Dual-way data transmission allows the HDCVI camera to interact with the HCVR, such as sending control signal or triggering alarm Moreover, HDCVI technology supports PoC for construction flexibility

• Long Distance Transmission

• HDCVI technology guarantees real-time transmission at long distance without any loss

• It supports up to 800m(720P)/1200m(720P) trans- mission via coaxial cable, and up to 300m (720P)via UTP
  cable

• Simplicity

• HDCVI technology inherits the born feature of simplicity from traditional analog surveillance system, making itself a best choice for investment protection

• HDCVI system can seamlessly upgrade the traditional ana-log system without replacing existing coaxial cabling

• The Plug And Play

• approach enables HD video surveillance without the hassle of configuring a network

• Smart IR

• The camera is designed with microcrystalline LED IR illumination for best lowlight performance

• Smart IR is a technology to ensure brightness uniformity in B/W image under low illumination

• Dahua’s unique Smart IR adjusts to the intensity of camera's infrared LEDs to compensate for the
  distance of an object, and prevents IR LEDs from overexposing images as the object come closer to the camera

• Multi-Formats

• The camera supports multiple video formats including HDCVI, CVBS and other two common HD analog formats in the market

• The four formats can be switched over through OSD menu or by PFM820 (UTC controller)

• This feature makes the camera to be compatible with not only HCVRs but also most end users’ existing HD/SD DVRs

• Multi-Language OSD

• OSD menu provides multiple image adjustments and function settings to meet the requirements of different monitoring scenes

• The OSD menu includes configurations such as backlight mode, day/night, white balance

• The camera supports 4 languages for OSD menu, namely, English, French, Spanish and Russian

• Protection

• With working temperature range of -40 °C to 60°C (-40 °F to 140°F), the camera is designed for extreme temperature environments

• Supporting ±30% input voltage tolerance, this camera suits even the most unstable power supply conditions

• Its 4KV lightning rating provides pro-tection against the camera and its structure from the effects of lightning

Product Specification

Brand	Dahua
Product Type	Dome Camera
Product Model	DH-HAC-T1A11P
Camera
Pixel	1 MP
Image Sensor	1/2.7" CMOS
Maximum Resolution	1280(H)×720(V), 1MP
Scanning System	Progressive
Electronic Shutter Speed	PAL: 1/25 s–1/100,000 s NTSC: 1/30 s–1/100,000 s
Minimum Illumination	0.04Lux/F2.4, 30IRE, 0Lux IR on
S/N Ratio	>65 dB
Illumination Distance	20 m (65.62 ft)
Illuminator On/Off Control	Auto/Manual
Illuminator Number	IR light
Pan/Tilt/Rotation Range	Pan: 0°–360° Tilt: 0°–78° Rotation: 0°–360°
Lens
Lens Type	Fixed-focal
Lens Mount	Board-in
Focal Length	2.8mm(3.6mm optional)
Maximum Aperture	F2.4
Field Of View	H: 93°(57.6°) V: 48°(32°)
Iris Control	Fixed
Close Focus Distance	800mm (31.50 Inch)
DORI Distance	Lens	Detect	Observe	Recognize	Identify
