Name: Bosch Plena Voice Alarm Call Station Keypad LBB1957/00
SKU: 1479642

Product Details ＋

Product Description

Seven zone selection keys
LED indications for zone selection
Up to eight keypads can be connected together

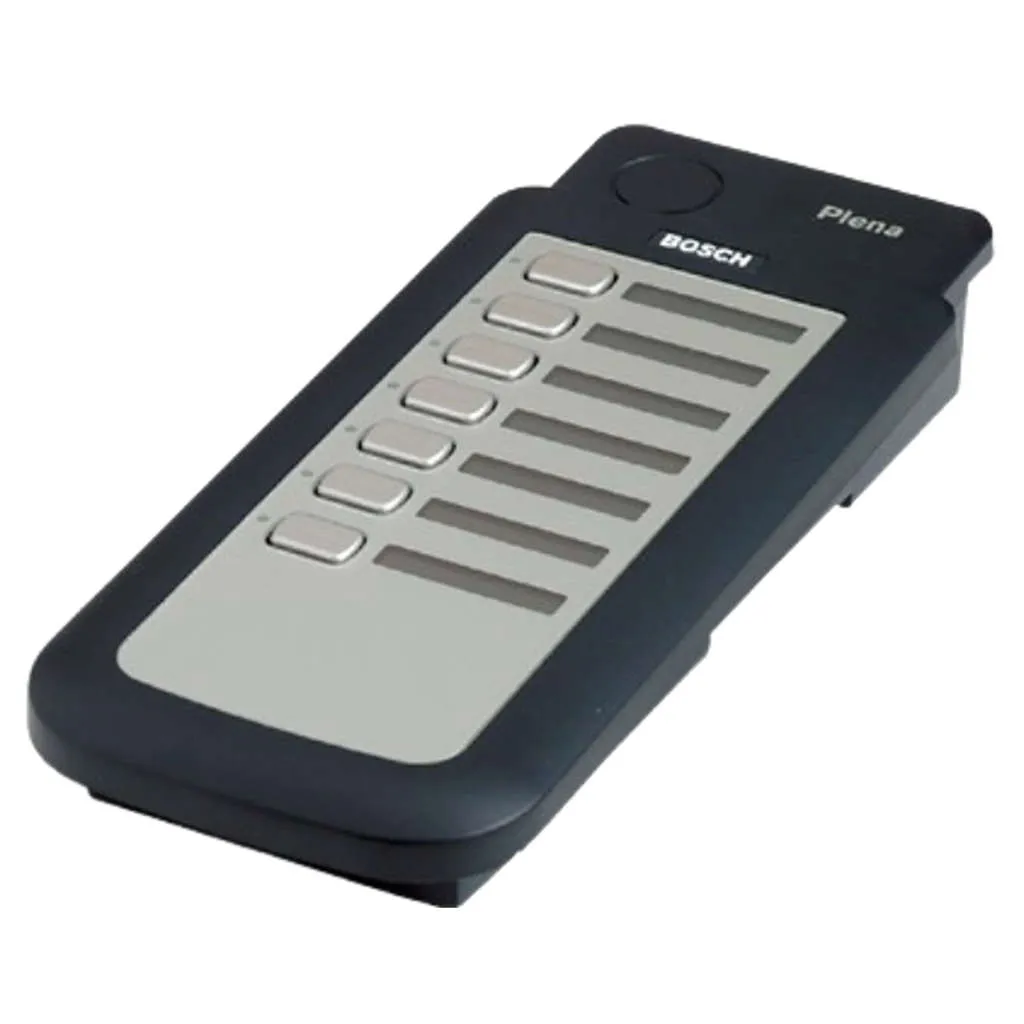

The LBB 1957/00 Call Station Keypad is an extension to the LBB 1956/00 Plena Voice Alarm System Call Station that adds seven additional zone-select keys
It has the same stable metal base as the call station
In addition to tabletop use, the special design allows it to be neatly flush-mounted in desktops
Functions
Each call station supports six zone selections
Connecting one of these keypads,adds seven zones or zone groups that can be selected
Up to eight keypads can be added to an LBB 1956/00 call station LEDs on the keypad indicate the active zones
Controls And Indicators
Seven zone selection keys
Seven zone selection LEDs
Eight DIP switches
Interconnections
Two RJ45 jacks
24 VDC input
Keypad connector

Product Specification

Brand	Bosch
Product Type	Call Station Keypad
Product Model	LBB1957/00
Power Supply
Voltage Range	24 VDC supplied by LBB 1956/00
Current Consumption	<15 mA
Environmental
Operating Temperature	-10 ºC to 45 ºC (14 ºF to 113 ºF)
Storage Temperature	-40 ºC to 70 ºC (-40 ºF to 158 ºF)
Relative Humidity	<95%
Mechanical
Mounting	Bracket coupled with LBB 1956/00 or other LBB 1957/00
Color	Charcoal with silver
Base Dimensions	40 x 100 x 235 mm (1.57 x 3.97 x 9.25 in)
Weight	Approx. 1 kg
Warranty	As Per Manufacturer Terms and Condition

Other Details

Dimension (MM) - L x B x H	40 x 100 x 235
Unit of Measurement	1 Piece
Weight	1 kg
Generic Type	Call Station Keypad
Manufacturer Details	Bosch Limited Post Box No: 3000,Hosur Road, Adugodi, Bangalore - 560030, India, Phone :18004258665
Packer Details	Bosch Limited Post Box No: 3000,Hosur Road, Adugodi, Bangalore - 560030, India, Phone :18004258665
Country of Origin	India
