Product Details

Now you can feel your monitor mix, too. BOOM-1 is designed to dramatically enhance a performer's personal mixing experience by adding powerful, optimally-processed low-frequency tactile information to any in-ear or headphone monitor mix.

Designed by the personal monitor experts, the BOOM System is easy to use and provides a natural low-frequency extension to your monitoring environment. The BOOM System products are compatible with all Aviom personal mixing systems and can easily be connected to any audio device that can provide a headphone or line-level output.

Made for musicians using in-ears

In-ear monitors provide a detailed and personal monitoring experience. Adding a well processed low-frequency tactile transducer (also known as a 'bass shaker') to a drum throne, keyboard seat, guitarist's stool, performance platform, or even to the floor of a stage, allows the body to feel bass frequencies, adding realism to the mix. The BOOM-1 Tactile Transducer Processor brings Aviom-optimized DSP to the tactile experience.

Being able to hear and feel your mix can significantly improve the user experience when using in-ear monitors and/or headphones, providing powerful sound usually achieved only with high volume and large, high quality speaker cabinets.

Note: Transducer Sold Separately

Specifications

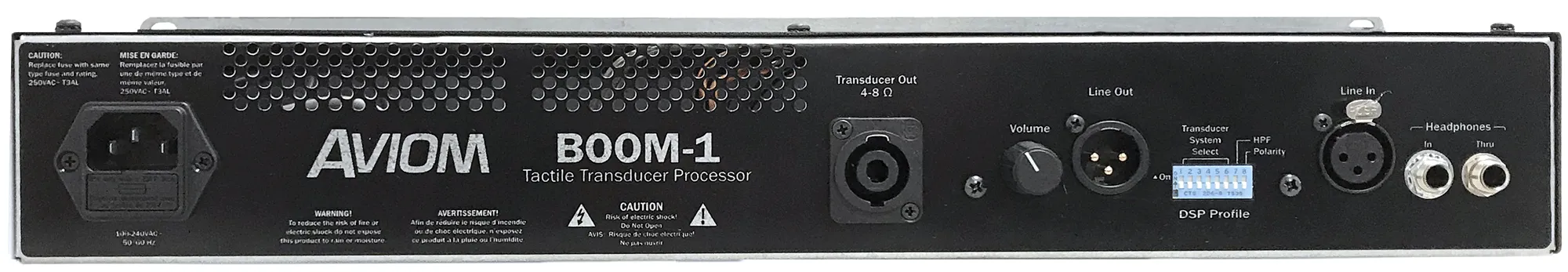

Headphone In (front & rear) 1/4-inch TRS stereo;
Tip: Audio Left; Ring: Audio Right; Sleeve: Ground
Headphone Thru (front & rear) 1/4-inch TRS stereo;
Tip: Audio Left; Ring: Audio Right; Sleeve: Ground
Line In XLR female,
Pin 2: Hot, Pin 3: Cold; Pin 1: Ground
Maximum Input Level 15.98 dBV
Input Impedance 9.5k Ohm
Line Out XLR balanced; mono; with Volume control
Maximum Output Level 12.55 dBV
Output Impedance 33.2 Ohms
Amplifier Output 4 Ohms - 210W
8 Ohms - 117W
Transducer Output 2-conductor locking speaker connector;

Power Supply Internal, universal switching type, IEC connector;
100-240 volts AC, 50/60Hz
Fuse 250VAC~ T3AL
Dimensions 19" (482.6 mm) wide x 8.62" (219.07 mm) deep;
2U, 3.5" (88.9 mm) high
Weight 6.0 lbs (2.72 kg)

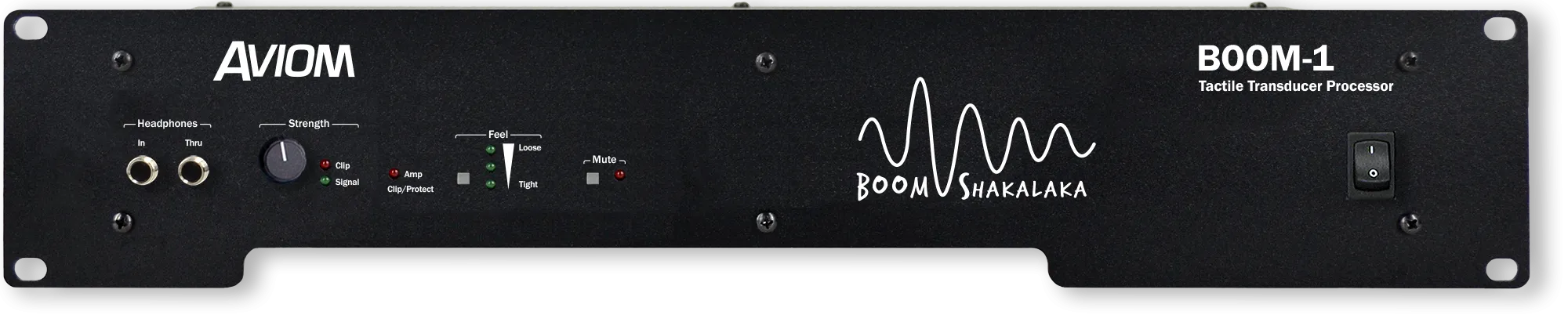

Aviom BOOM-1 Tactile Transducer Processor
  • DefaultTitle

$ 68.38

$ 52.60
